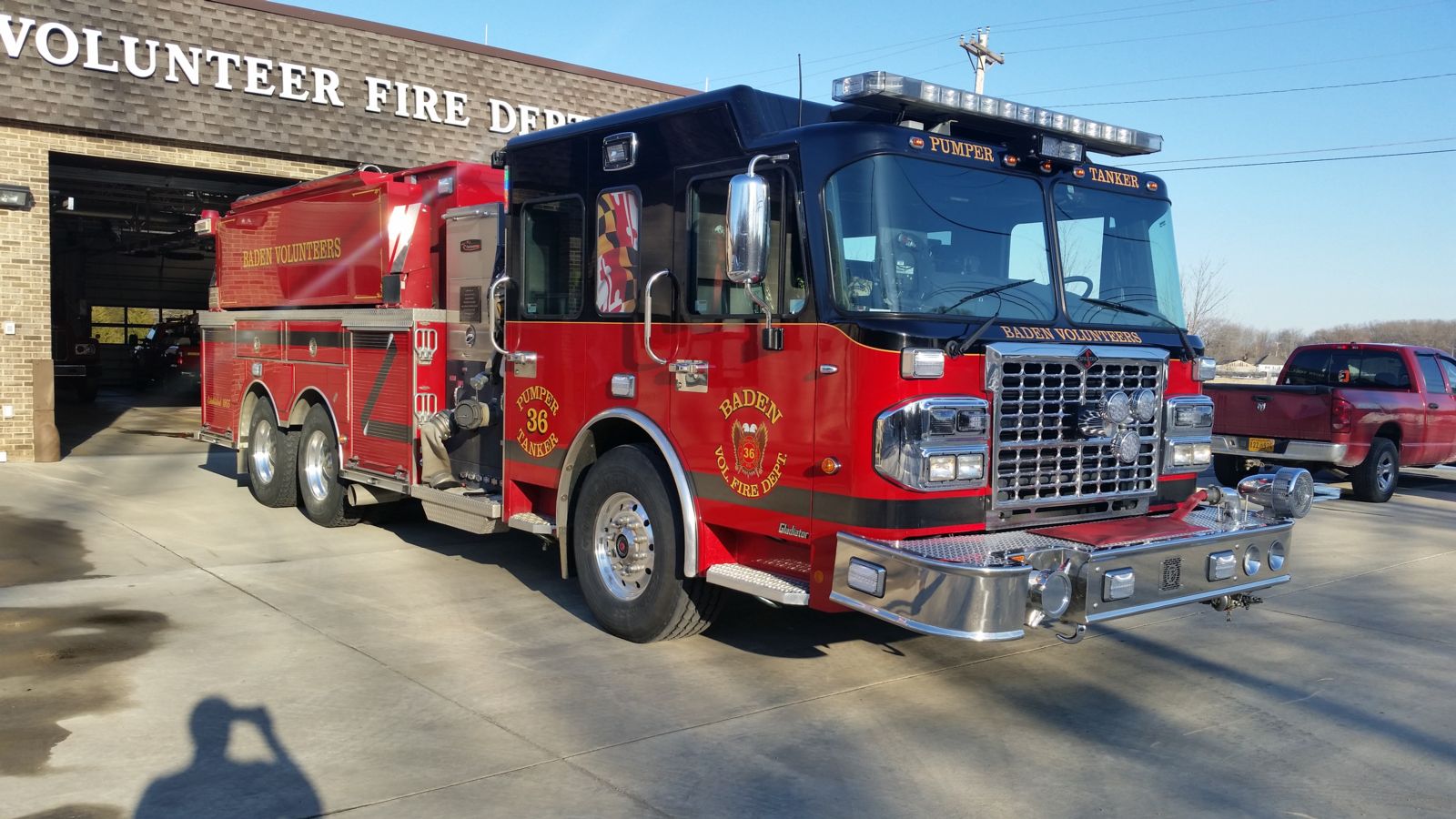

Pumper-Tanker 36
2012 Spartan Gladiator/CustomFire
Pumper-Tanker
In 2011 Baden's leaders saw the need to replace our 1993 Pierce Engine so they formed a apparatus committee
to start researching the project. Due to the diminishing volunteer members, changes in the fire service,
apparatus technology and with a lot of consideration it was found that Baden's next apparatus purchase needed
to be a multipurpose vehicle. After over a year of planning and bid processes Baden selected Redstorm
Fire & Rescue Apparatus to build us a new Pumper-Tanker. On May the 15th 2013 we took
deliver of a $563,000 Pumper-Tanker that is essentially two vehicles in one. Everyday it amazes the
department and exceeds the committees expectation of its capabilities.
Pumper-Tanker Specifications
9'6" Tall 35' Long 6 person cab
Cummins ISK15 500 HP 1850 Torque
2500 Gallon water tank and 50 gallon class A foam tank
2000 G.P.M. Waterous mid ship pump rated at 1500 G.P.M.
Pump Boss automatic pressure governor
8 KW Harrison Hydraulic Generator
2- 1000W 240 volt Telescoping Scene Lights
2- 1000W 240 volt body mounted scene lights
200' cord reel recessed in the body
6- body mounted 12 volt LED scene lights
Hose Load:
- Trash line (bumper) 150' 1 1/2"
- 3- cross lays 2-200' 1 3/4" & 250' 2"
- 400' leader line (200' 2 1/2" gated "Y" and 200' 1 3/4")
- 1600' of 3" supply line
Slide in ladder compartments with pike pole storage
3000 gallon electric drop down folding tank and hard sleeve storage

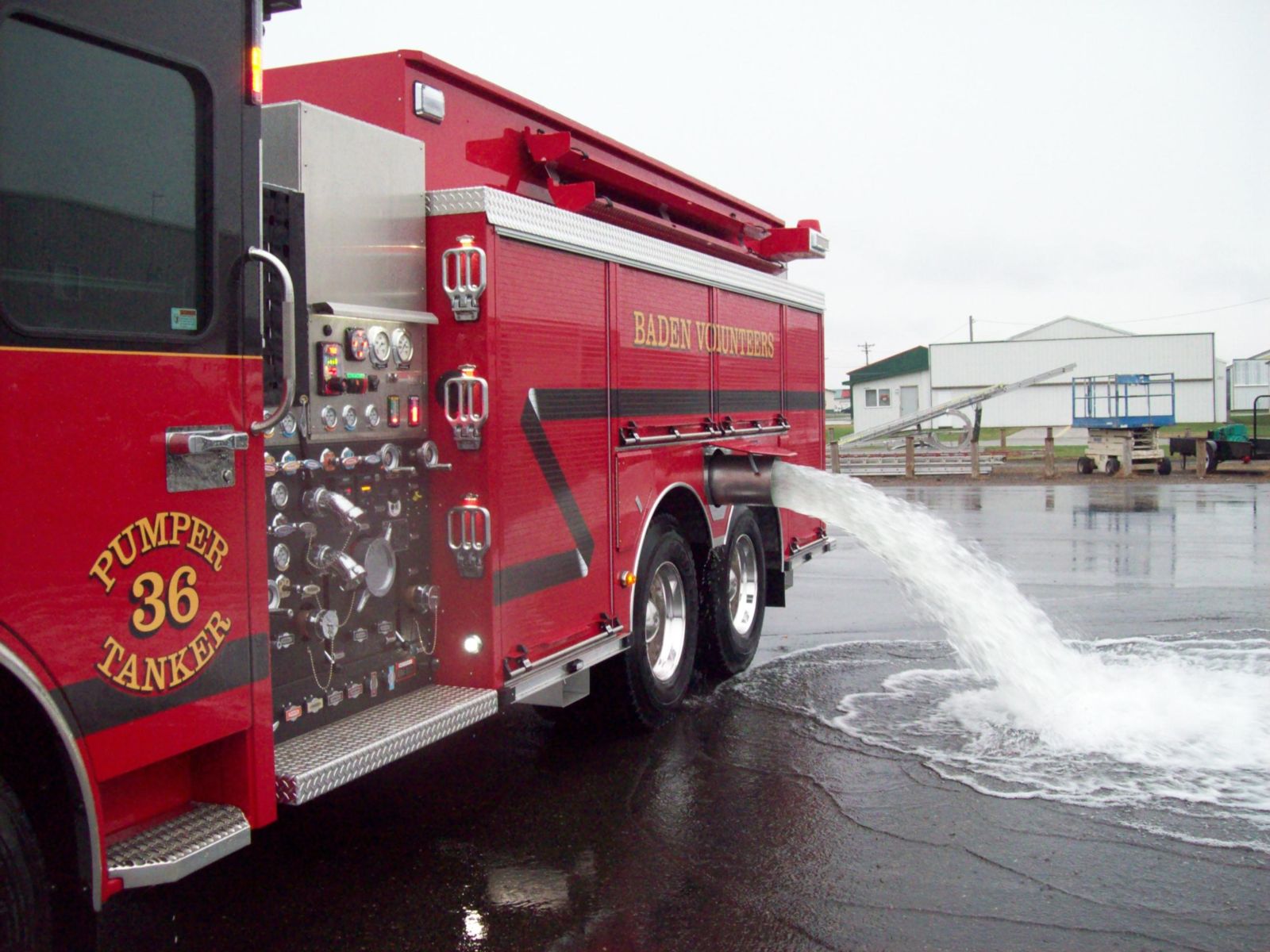

2-10" side air operated dump chutes
10" rear electric operated dump chute
2- Rear direct tank fills (4" & 3") Fire mans Friendly valves capable of
filling @ 2000 G.P.M.

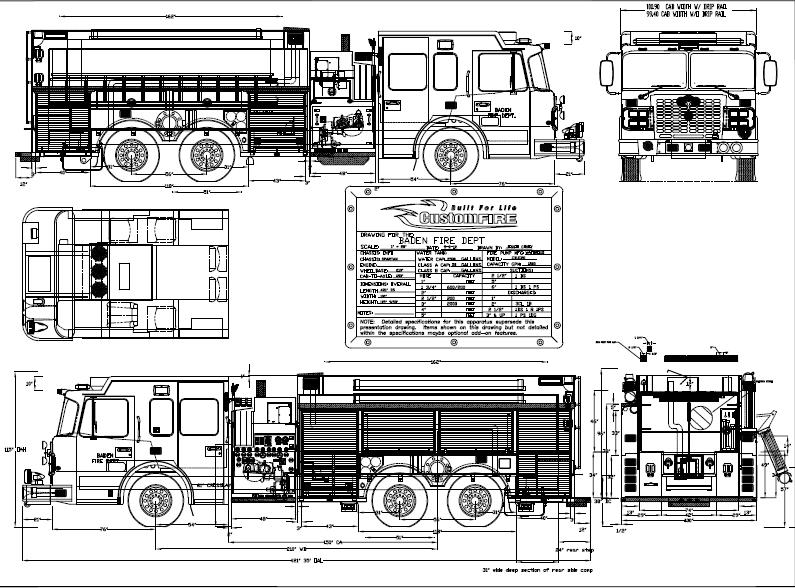

For more pictures of the build process click photo

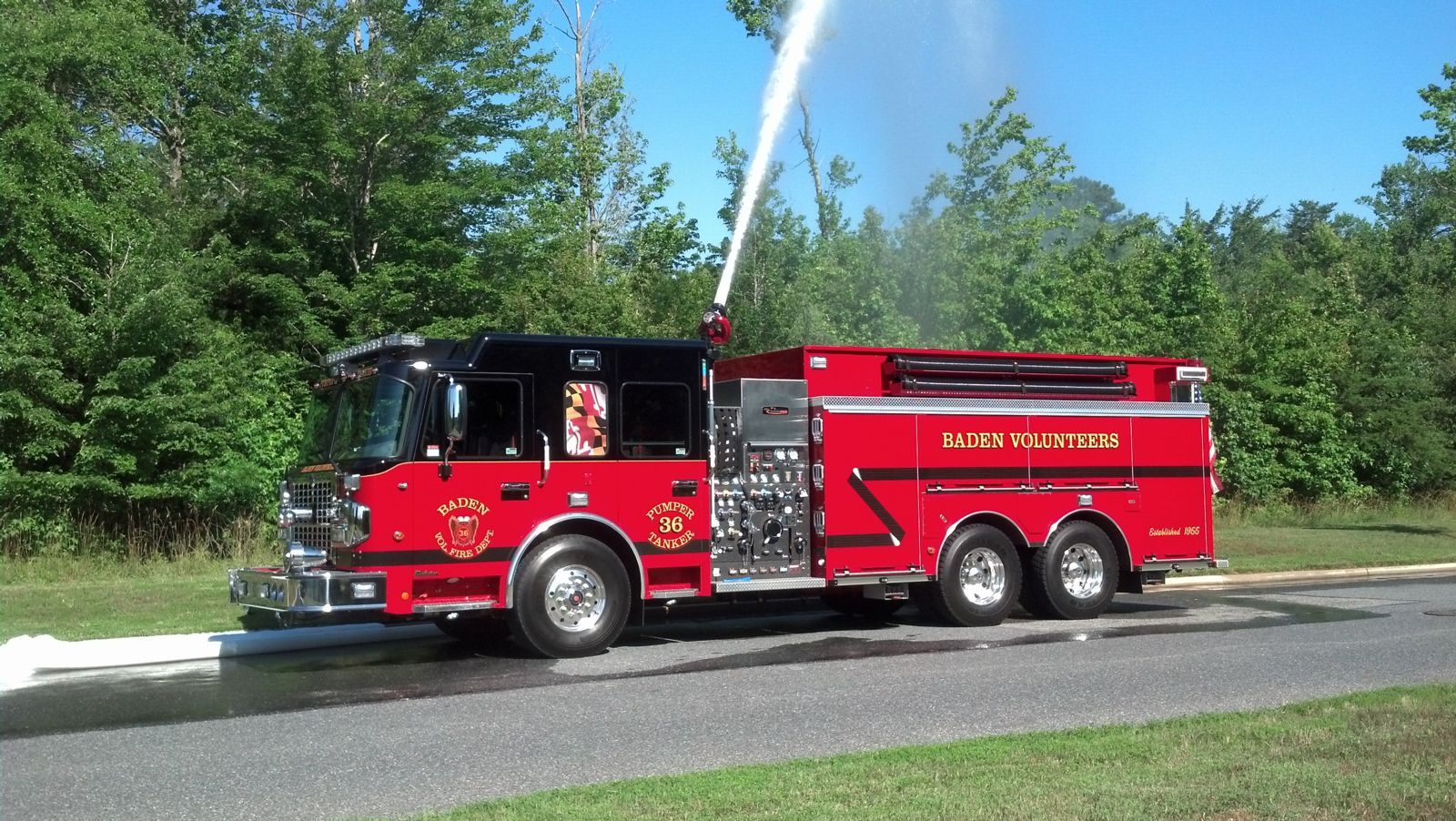

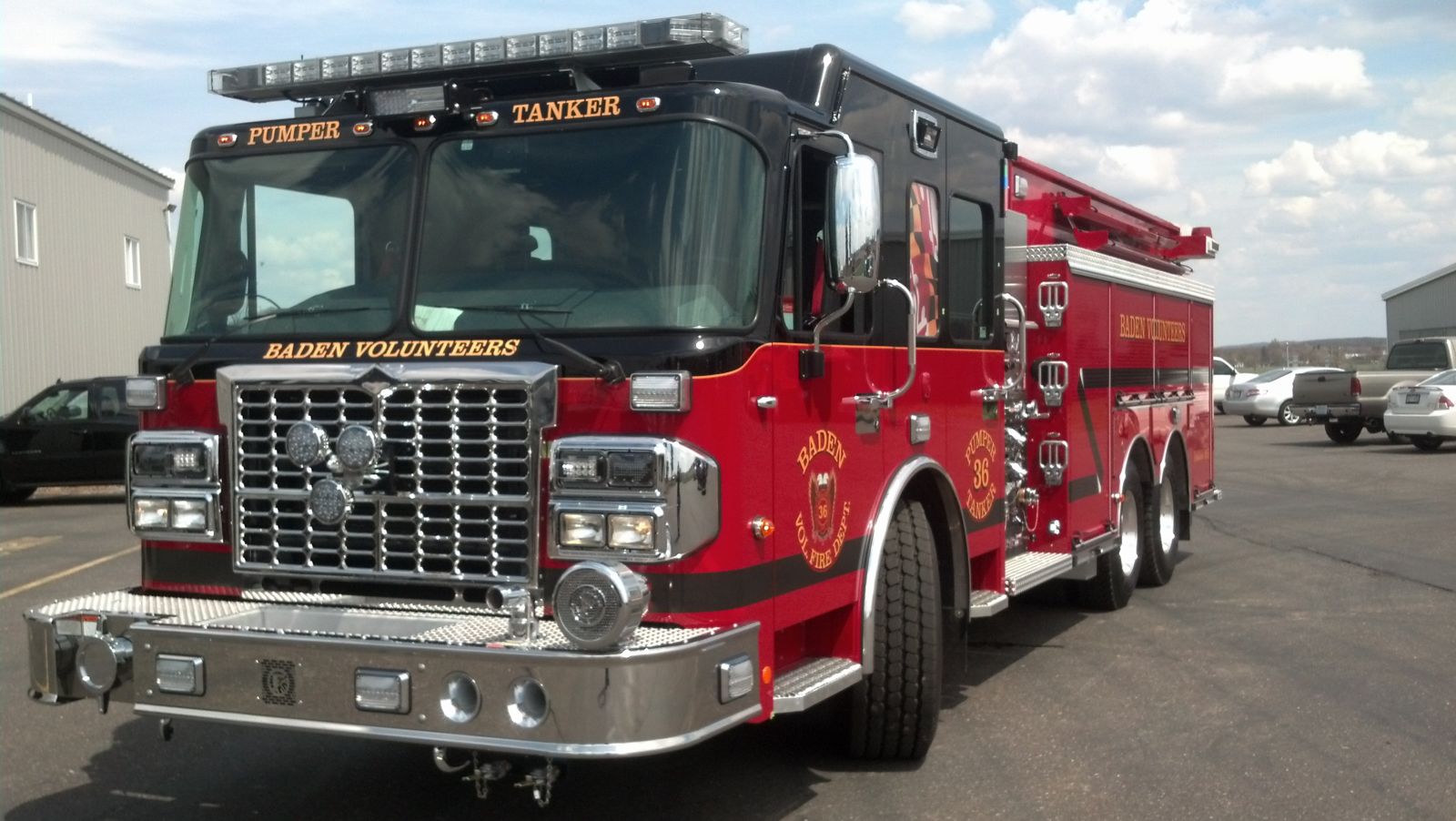

At final inspection at CustomFire

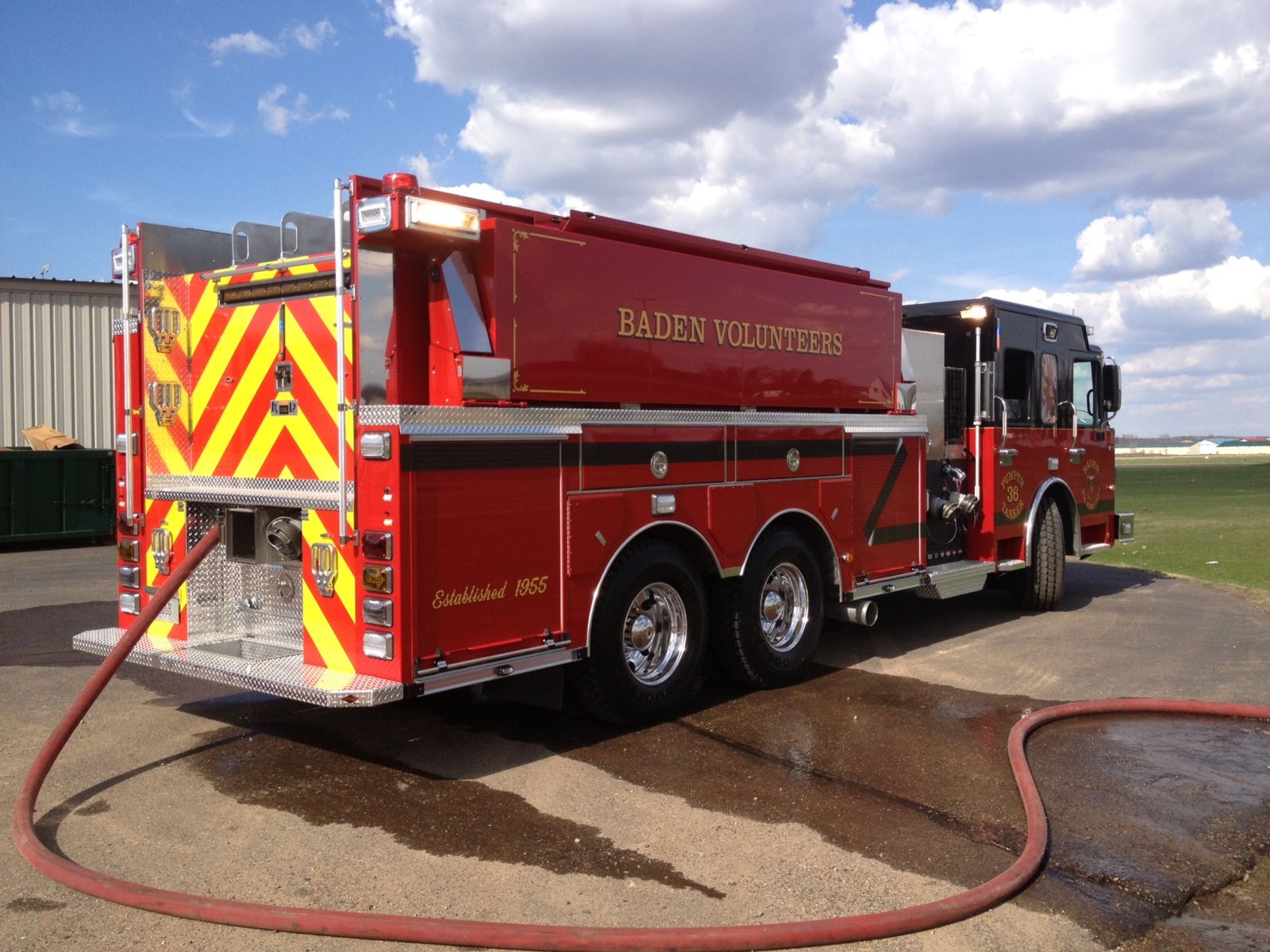

Filling the tank through the 4" Fire mans Friendly valve

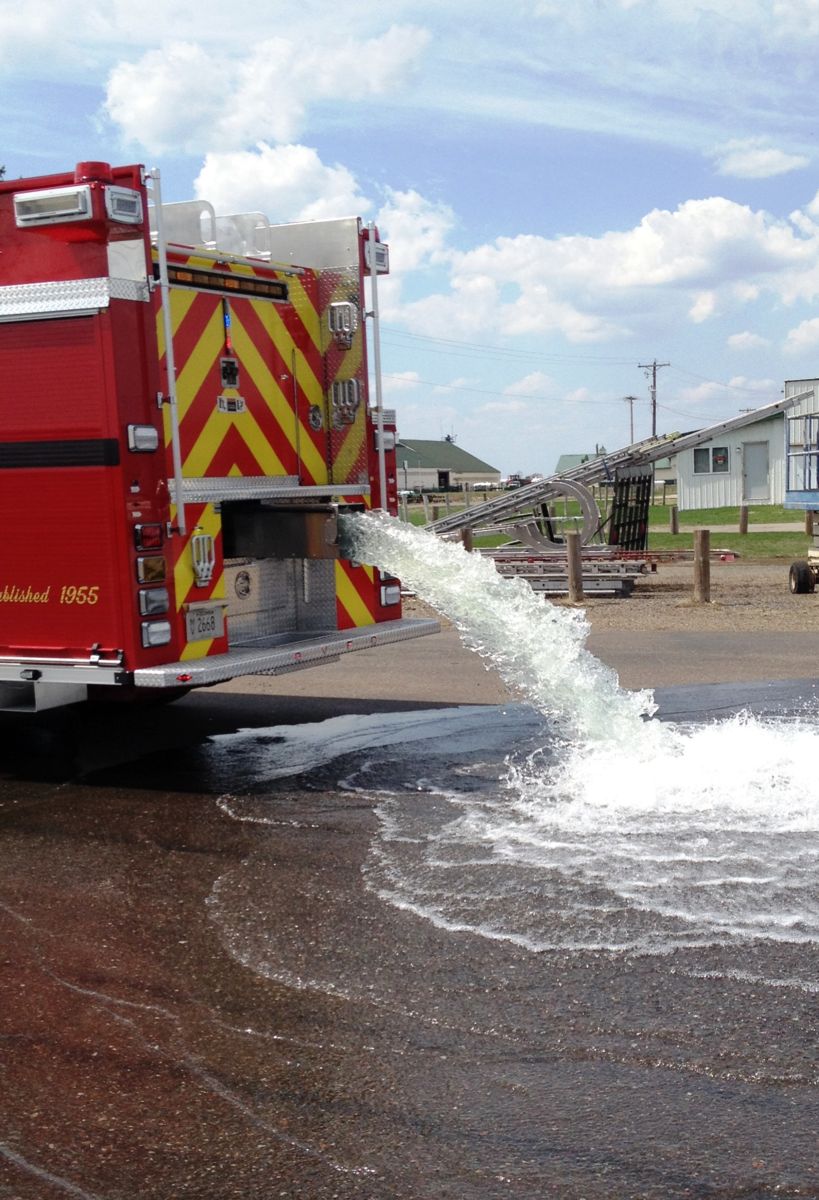

10" rear dump chute

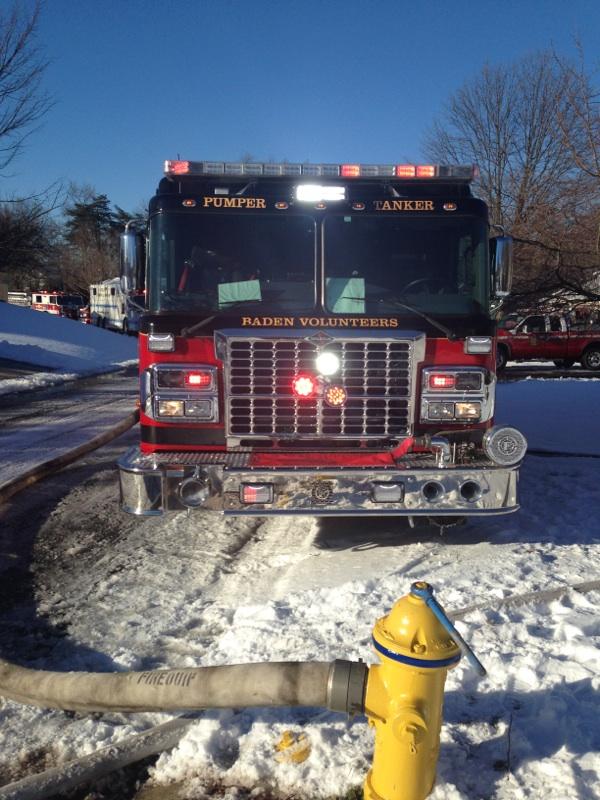

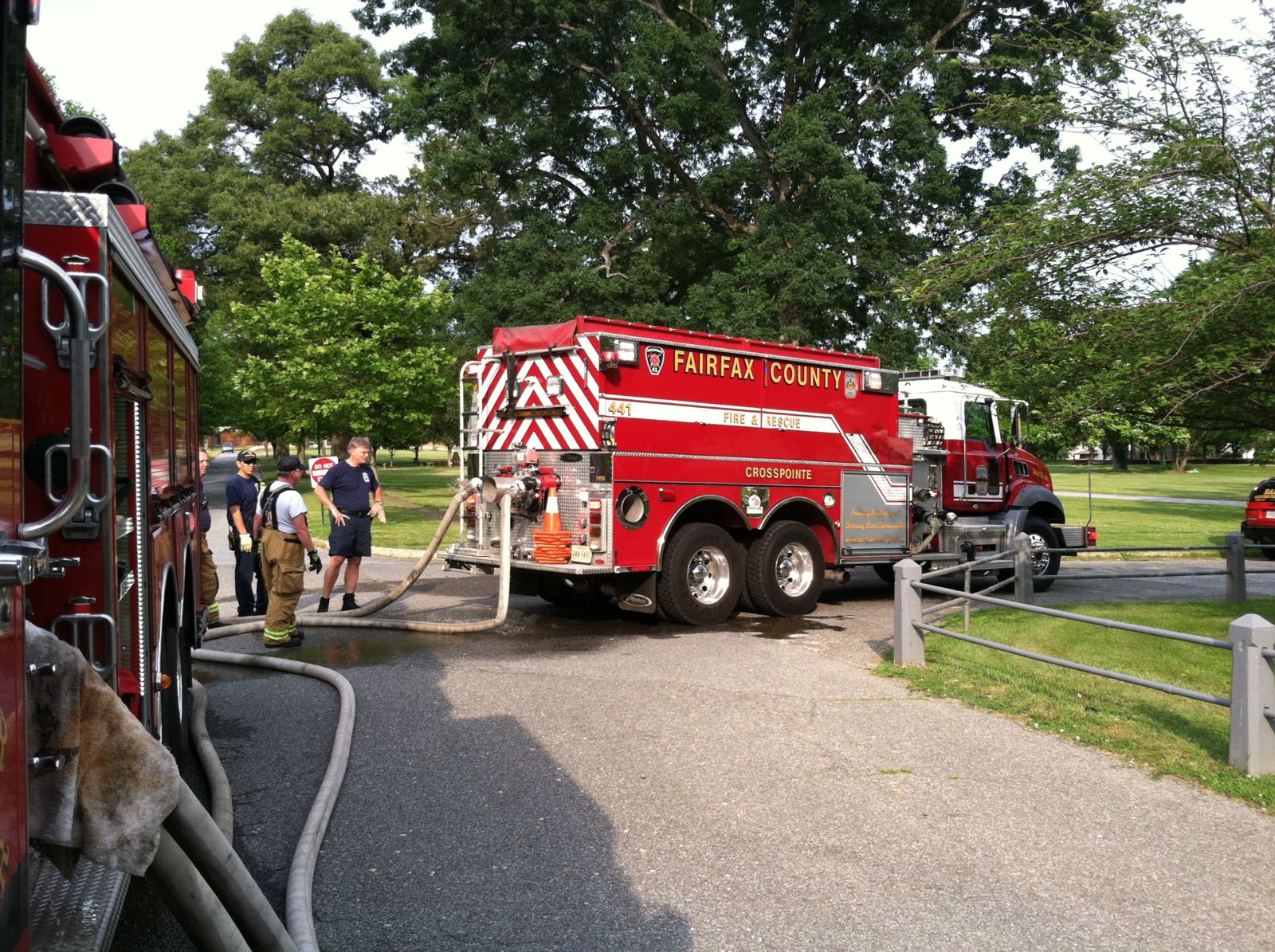

Pumper-Tanker 36 operating as a fill site for Tankers

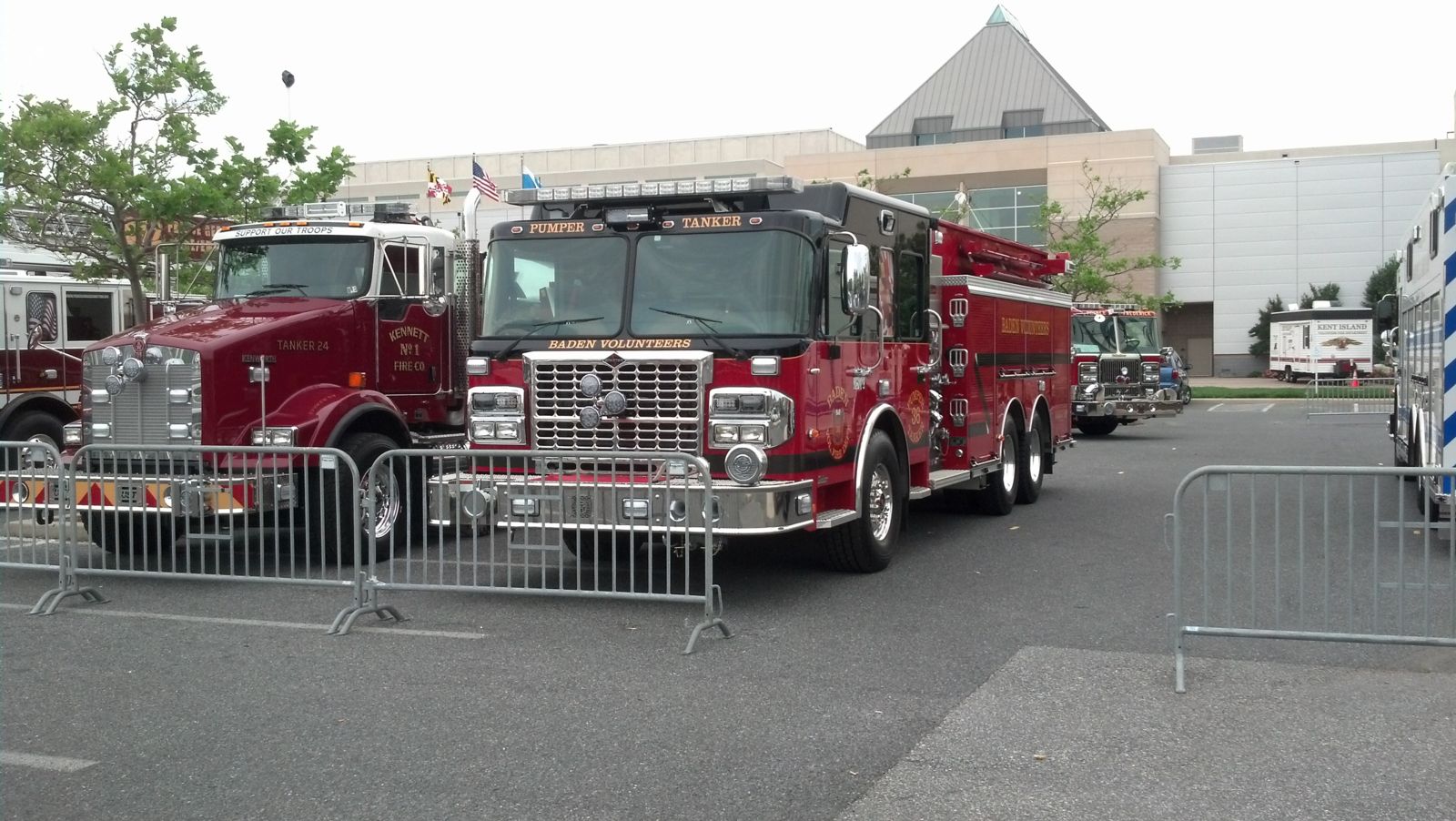

2013 Maryland State Fire mans Convention Ocean City, MD

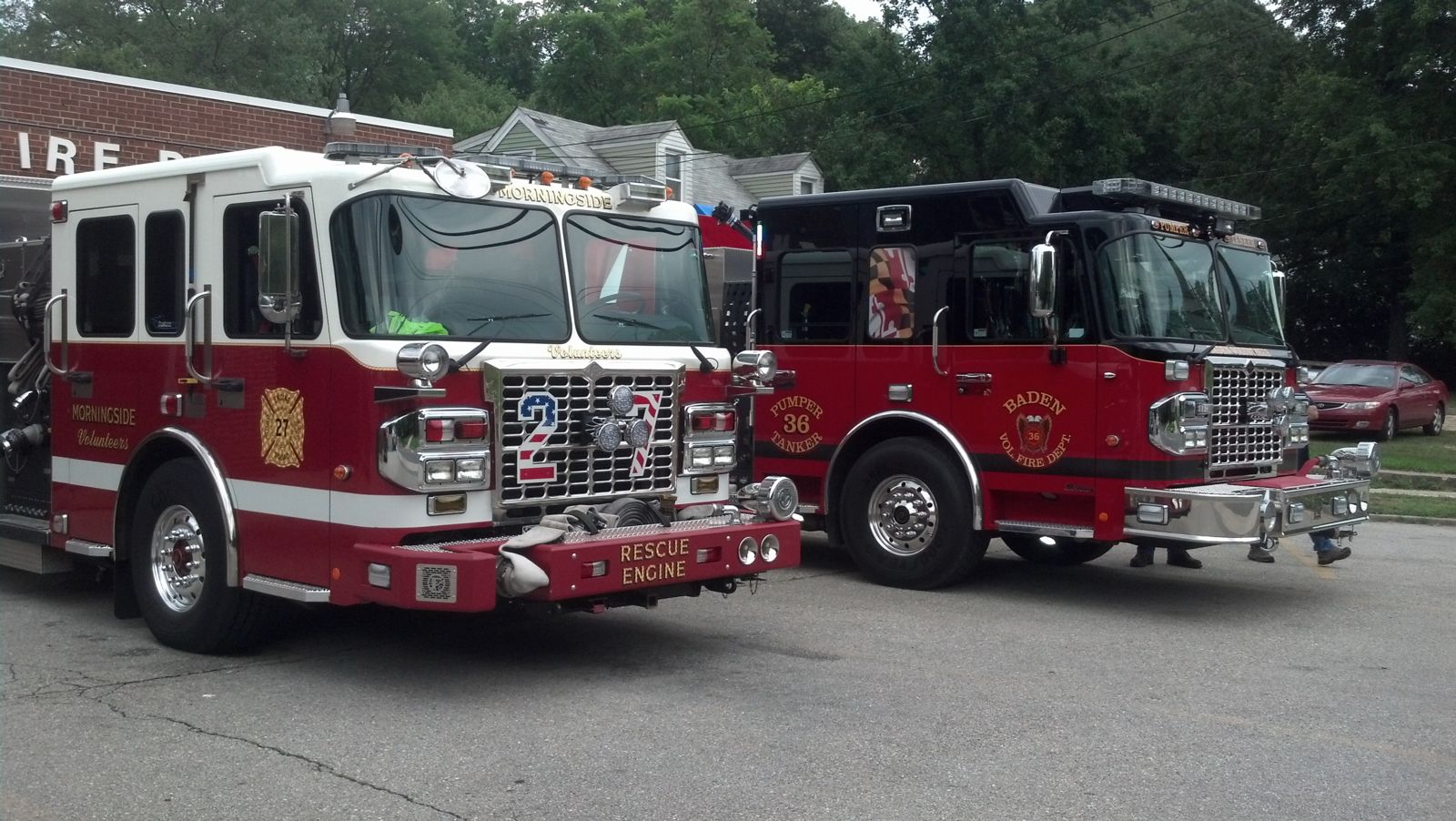

Rescue Engine 27 and Pumper-Tanker 36 both built
by CustomFire
